Spirette mouthpiece

  • The NDD Spirette mouthpieces have been engineered to fit perfectly into NDD devices to guarantee reliable and high quality measurement results.
  • NDD Spirette mouthpieces prioritise hygiene and safe re-use of NDD devices by avoiding cross-contamination between patients.
  • The Spirette mouthpieces are single-use only and disposable.

Highlights

  • Swiss design by NDD engineers
  • Breathing tube for infection control
  • Ergonomic design for comfortable testing
  • Easy handling for technicians
  • No expiration date
  • No special storage condition

What’s in the box

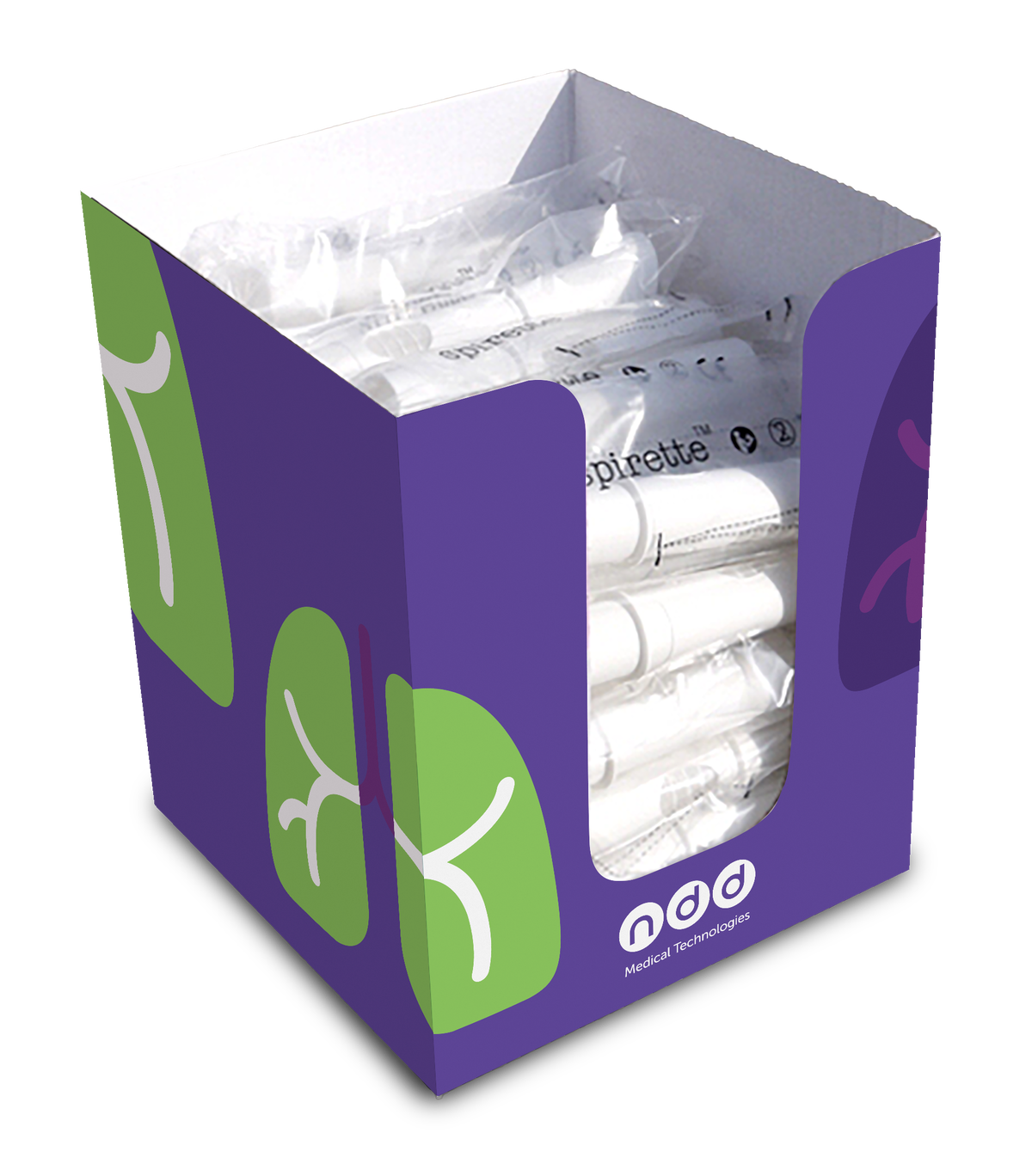

  • 50 Spirette mouthpieces including a dispenser box
  • 75 Spirette mouthpieces including a dispenser box Not available in the United States or Canada
  • 200 Spirette mouthpieces including a dispenser box
  • 500 Spirette mouthpieces (dispenser box not included) Not available in the United States or Canada

Technical specifications

Material

  • Spirette mouthpiece: Linear low density polyethylene (LLDPE)
  • Bag: Polyethylene (PE)

Transport and storage information

  • Temperature range: -20 to 50°C (-4° to 122°F)
  • Relative humidity: 5 to 95%
  • Atmospheric pressure: 500 to 1060 hPa
  • No expiration date

Dimensions (H x W x D) and weight

  • Single Spirette mouthpiece: 25 x 38 x 140 mm and 8 g (1 x 1.5 x 5.5 in and 0.3 oz)
  • Dispenser box: 23 x 19 x 19 cm (9 x 7.5 x 7.5 in)
  • Packaging box - 50 Spirette mouthpieces: 25 x 20 x 20 cm and 0.9 kg (10 x 8 x 8 in and 2 lb)
  • Packaging box - 75 Spirette mouthpieces: 25 x 20 x 20 cm and 1 kg (10 x 8 x 8 in and 2.2 lb)
  • Packaging box - 200 Spirette mouthpieces: 25 x 39 x 39 cm and 2.3 kg (10 x 15 x 15 in and 5 lb)
  • Packaging box - 500 Spirette mouthpieces: 31 x 40 x 60 cm and 6.5 kg (12 x 16 x 24 in and 14.3 lb)

Questions & answers

FAQ

Can I reuse the Spirette mouthpiece?

The Spirette mouthpieces are single-use only and disposable.

FAQ

Can I wash/disinfect the Spirette mouthpiece?

To avoid cross contamination the Spirette mouthpiece is recommended to be used only once. Washing / disinfection of the Spirette mouthpiece might damage sensitive parts, which may compromise the test results and the safe avoidance of cross contamination.

FAQ

Can I use any breathing tube on the market for testing, as long as it fits into the sensor?

As a crucial component of the TrueFlow technology, the measurement accuracy is also ensured by the NDD Spirettes/EasyOne FlowTubes, which are precision-manufactured and undergo stringent quality inspections. Therefore we highly recommend using the original NDD Spirette/EasyOne FlowTube to fully benefit from the TrueFlow technology.

FAQ

How do I connect the Filter Adapter SP to the Easy on-PC Spirette?

Assembling the filter and adapter components is simple and easy. To add a filter (2) to the Easy on-PC, insert the Spirette normally.  Then attach the (1) filter adapter (SP) to the back of the spirette and connect the filter to filter adapter (SP), as shown in the diagram below. If you have questions about how to connect or use NDD filters, please contact NDD customer support in North America at [email protected] and internationally at [email protected].

FAQ

How to connect a filter to the EasyOne Pro/LAB

To add a filter (2) to the EasyOne Pro, insert the (1) Spirette FA Pro/LAB into the EasyOne Pro handle. Then attach the filter to the Spirette FA Pro/LAB, as shown in the diagram below. If you have questions about how to connect or use NDD filters, please contact NDD customer support in North America at [email protected] and internationally at [email protected].

Compatibility

Portable DLCO, MBW, Lung Volumes, LCI and Spirometry

Portable DLCO, Lung Volumes and Spirometry

PC spirometer
